Slimline
Aluminium Heritage Windows
- Slimline 47mm Aluminium Frame
- Alitherm Heritage Profile from Smart Systems
- Double and Triple Glazing Available
- PAS 24 Upgrade for New Builds
- 10-Year Manufacturing Guarantee

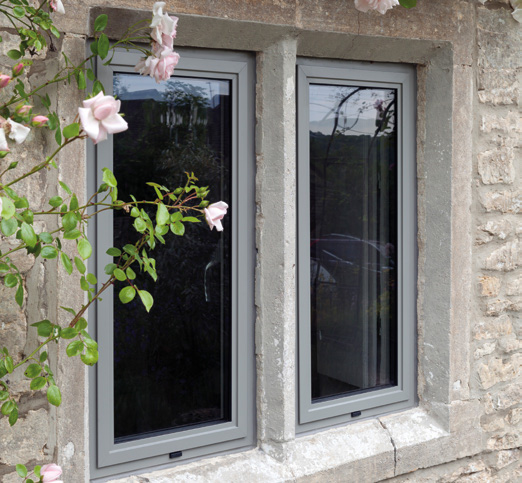

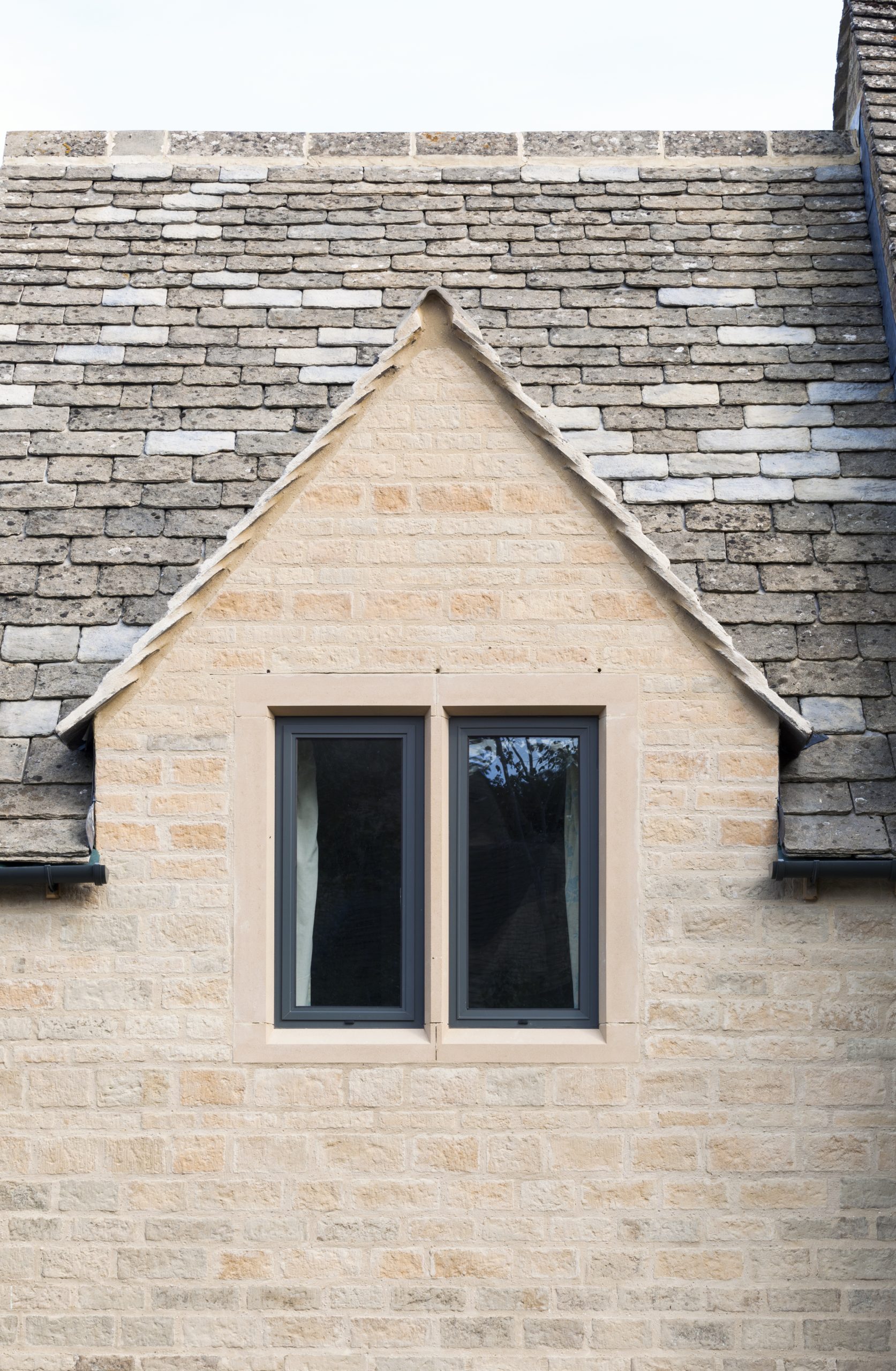

Our aluminium heritage windows are ideal for traditional heritage applications, and they were introduced to meet the requirements of refurbishments, particularly in sensitive planning areas. Our Alitherm Heritage aluminium windows are designed to replicate the slim sightlines and elegant profiles of traditional steel windows, providing a stylish, steel look exterior.
Aluminium replacement windows manufactured by our West Yorkshire team offer advanced thermal efficiency and durability and require minimal maintenance. Elevate the look and feel of your next project with our range of product customisations, including powder-coated finishes and glazing tailored to your requirements and preferences.

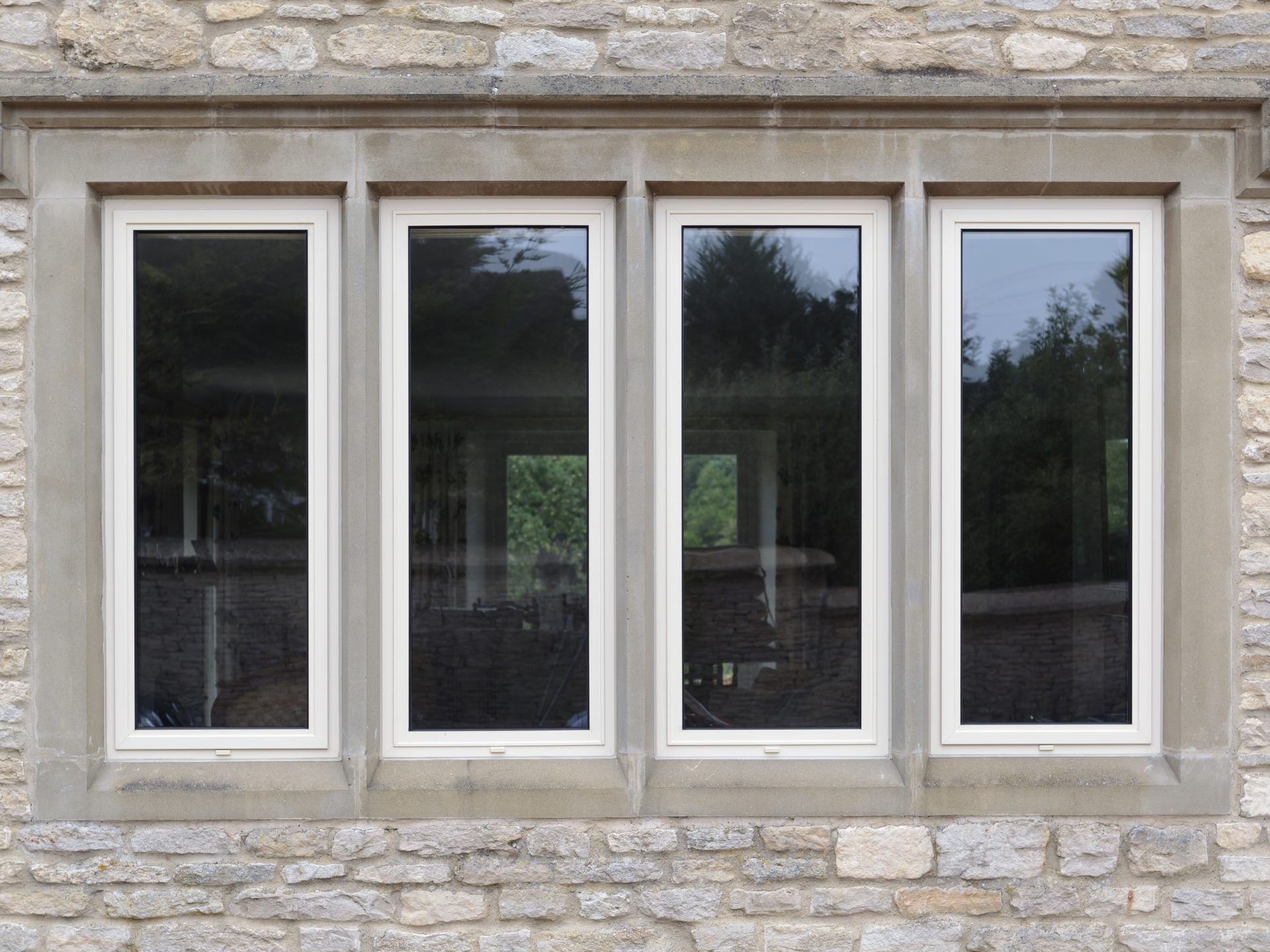

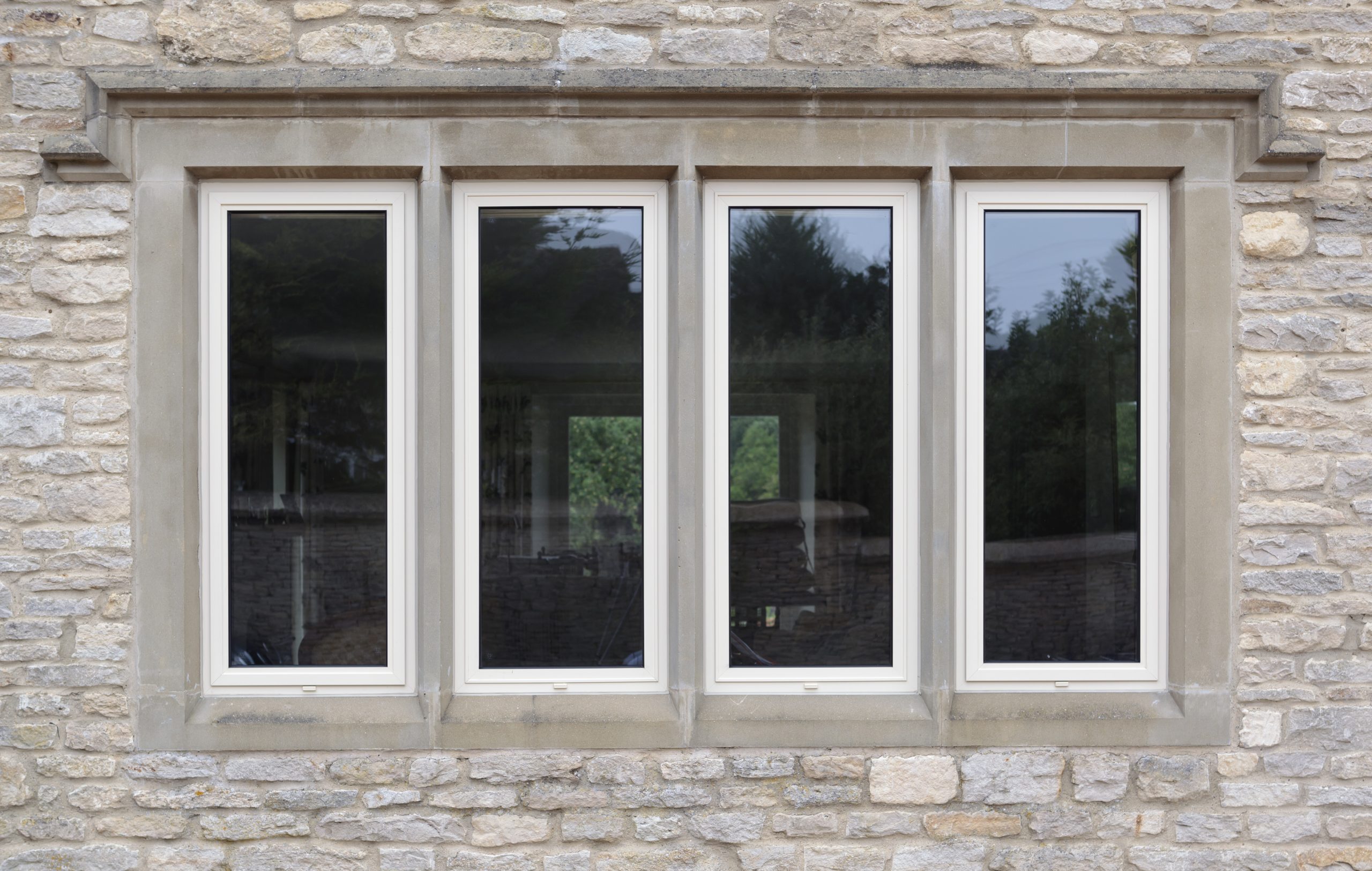

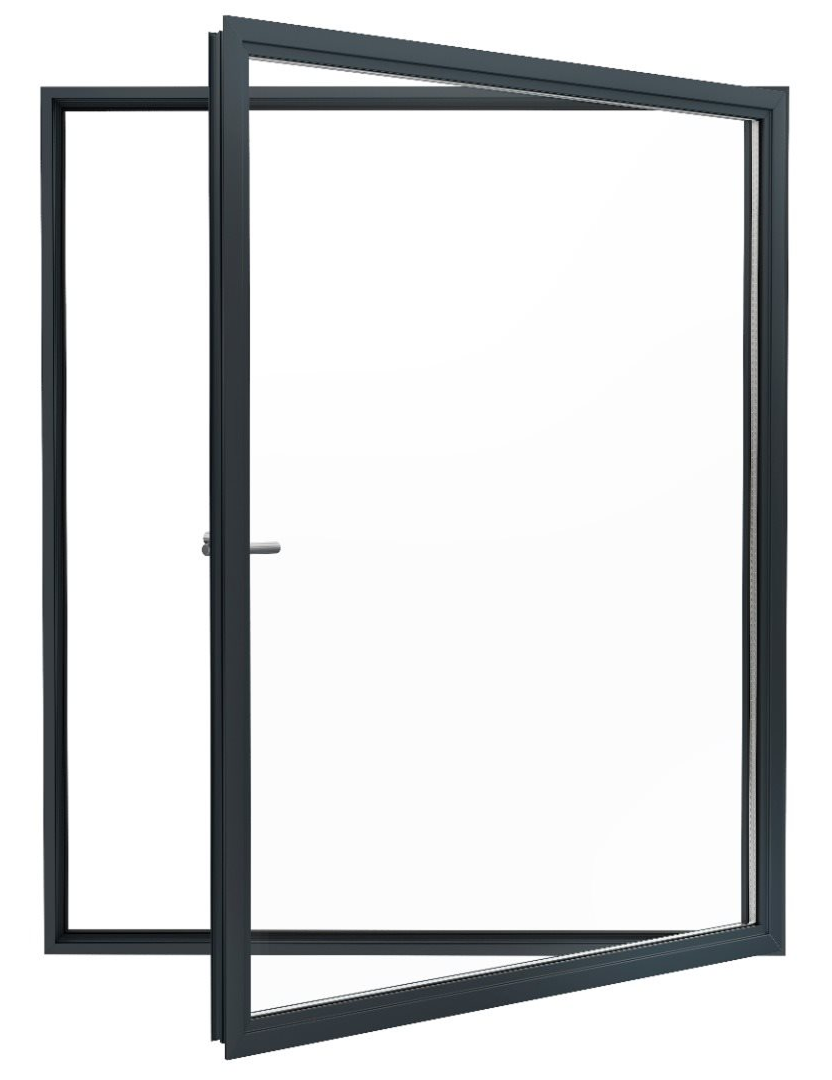

Aluminium Heritage Windows
Slim Aluminium Frame
The Alitherm Heritage aluminium window stands out for its super slim frames, designed to replicate the sleek sightlines of traditional steel windows. The slim frame windows not only enhance the aesthetic appeal of a property, but also maximise the glazed area to allow more natural light to enter a home.
Powder-coated Aluminium
Our range of slimline aluminium windows are made using powder-coated aluminium profile from our long-standing extruder Smart Systems. Powder coating involves the application of dry powder to the aluminium, which is then cured under heat to create a uniform finish. This coating serves as a protective barrier against harsh weather conditions, significantly prolonging the lifespan of our windows.

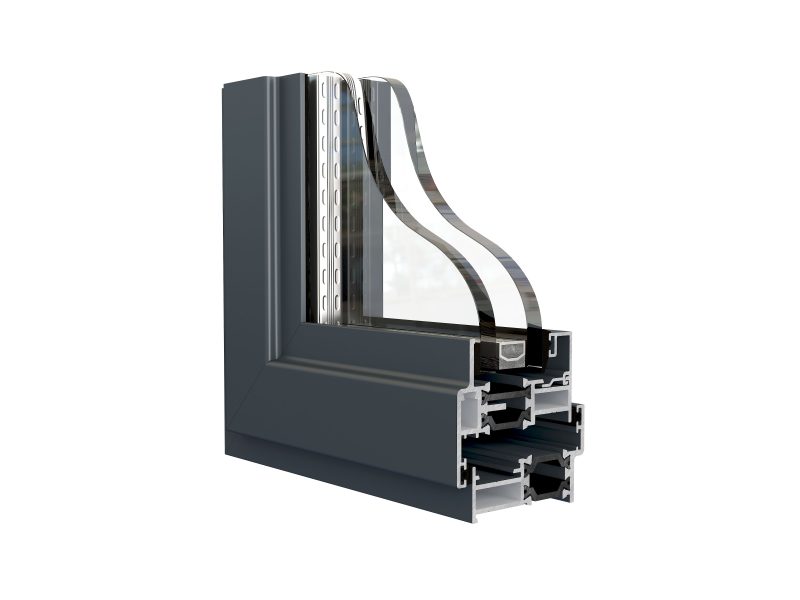

Polyamide Thermal Break
To enhance thermal efficiency, our aluminium windows incorporate a polyamide thermal break. This non-conductive material is placed between the inner and outer parts of the aluminium frame, effectively reducing thermal transmittance and improving energy efficiency.

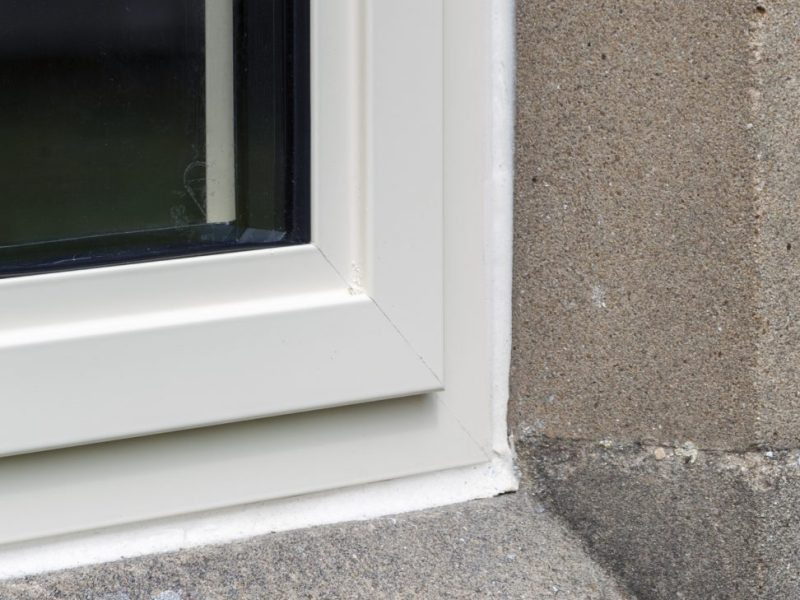

Corner Bonds
Aluminium windows are not typically welded in the traditional sense used for uPVC. Instead, the assembly and joining method for our aluminium double glazing involves precision machining in which the profile is cut to size, following advanced bonding techniques including the use of high-strength adhesives.

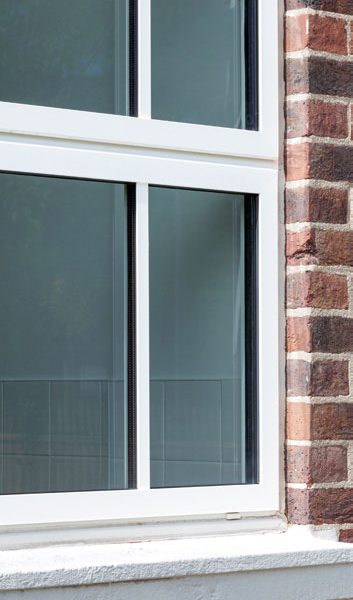

Flat Surface Bars
Flat surface bars also known as glazing bars or in some cases astragal bars are horizontal and vertical slim pieces of frame that divide the glass panes within a window. Our bars are fixed on the glass surface with back-to-back spacer bars inside the glazed unit to give them the unit the appearance of separate sections. You might choose a bar layout for your new windows to create a classic or traditional look.

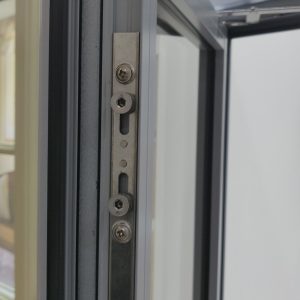

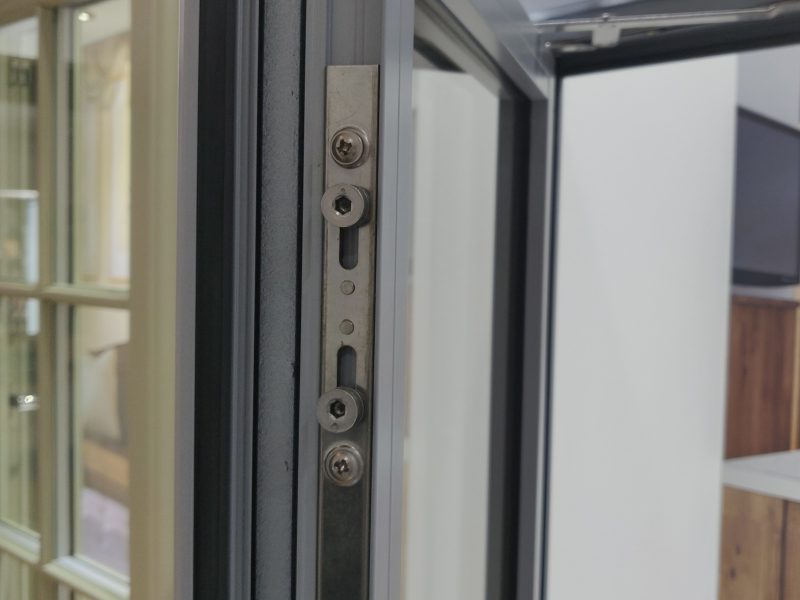

Multi-point Locking Mechanism
For enhanced security, our modern aluminium windows are fitted with a multi-point locking mechanism. This system ensures multiple locking points engage simultaneously, distributing the locking force evenly across the frame for added security and peace of mind.

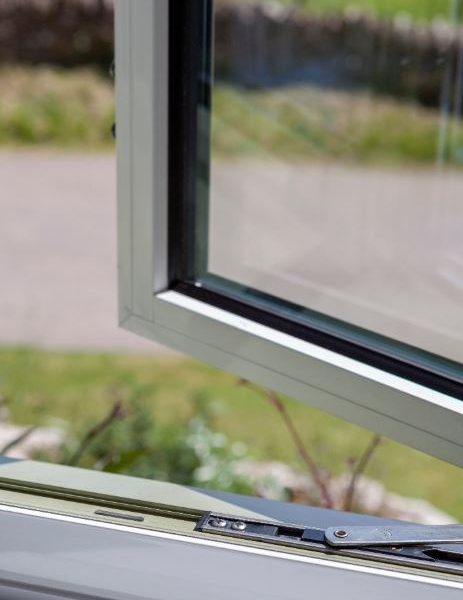

Friction Stay
A friction stay is a key component used in windows to provide smooth, controlled opening and closing. Unlike traditional hinges, friction hinges allow these windows to stay open at various angles without the need for additional support or a mechanical stay. Additionally, egress hinges are available, which not only enhance the functionality of the window by allowing it to open fully for easy cleaning but also provide an escape route in case of emergencies – limitations may apply.
Trickle Vents
In line with the latest Building Regulations, our slim aluminium windows can come with trickle vents fitted into a 42mm add-on to ensure airflow even when the windows are closed. These vents, which are colour-matched to your chosen window finish, come in two sizes: 2500EA and 5000EA.
Sill Options
Our aluminium windows come with a variety of sill options to meet the functional needs of the window opening.
Choose between: No sill / 85mm / 150mm / 190mm
Colour Options
Black
Black
Anthracite Grey
Anthracite Grey
White
White
Black
White
Anthracite Grey
White
Hardware Options
Discover the perfect handle for your slim aluminium windows. Choose from the sleek in-line handle, available in various finishes to complement your décor, or opt for the classic monkey tail or rounded tear drop handle to add a touch of traditional charm. With our premium selection of hardware, every detail of your aluminium windows can reflect superior quality and craftsmanship.
Inline
Tear Drop
Monkey Tail
Black
Antique Black
Anthracite Grey
Gold
Bronze
Satin Silver
Chrome
White
Antique Black
Chrome
Antique Black
Chrome
Looking for a new supplier of Aluminium Heritage Windows?
Quote & Order Online 24/7
Creative Marketing Resources
Exclusive Trade Prices
Glazing Options
Double Glazing
As standard, our aluminium windows are fitted with 28mm double glazing featuring a PVC warm edge spacer bar to minimise heat transfer between panes and retain more heat inside the home. The double glazing itself includes a 4mm layer of clear low E glass, designed to enhance thermal insulation by reducing heat loss through the double glazed unit.
Triple Glazing
Enhance your aluminium windows with our triple glazing option, designed to take the thermal performance to the highest possible level. With triple glazing the window will boast three panes of glass with argon gas sealed between two pockets, creating a second insulation barrier compared to double glazing. Choose triple glazed windows to enjoy improved energy efficiency and a comfortable living space all year round.
Spacer Bars
Spacer bars are placed around the perimeter of the glazed unit in our aluminium casement windows. They provide crucial structural support and ensure consistent spacing between the panes. You can select from three bar colours – black, grey, and white – to match your window’s aesthetic.
Preview finishes
Laminated Glass
Our glass upgrades feature laminated glass, which offers improved safety. In the event of breakage, laminated glass stays intact, minimising the risk of injury from sharp fragments. It is commonly used in doors and windows where the glass could be subject to impact.

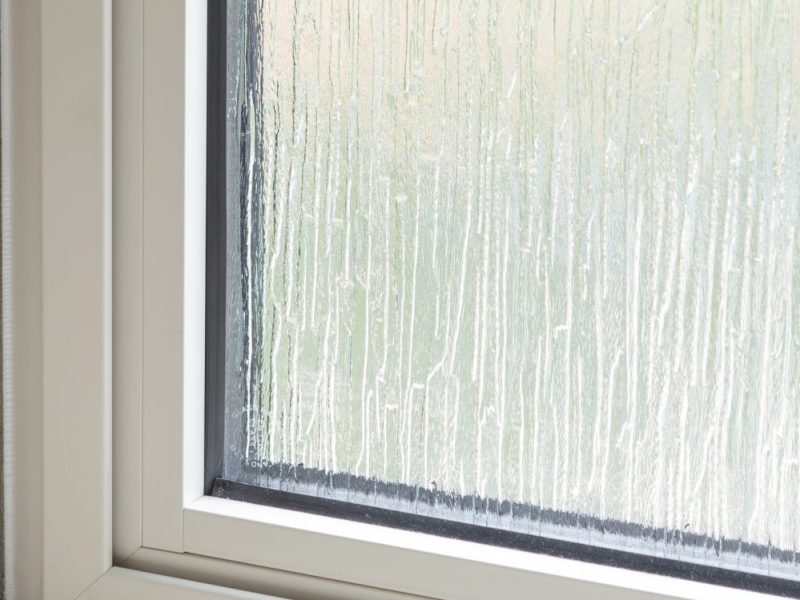

Obscure Glass
Satin (Level 5)
Stipple (Level 4)
Westminster (Level 2)
Bark (Level 5)
Contour (Level 3)
Leaf (Level 3)
Venetian Integral Blinds
For added convenience and style, consider Venetian integral blinds, integrated within the double-glazed unit. These blinds offer privacy and light control, available in 10 different colours to complement your window’s frame finish. Please note that the operational device will always be positioned on the right-hand side (viewed internally).
| Name | Solar Reflection | Light Reflection | Solar Absorbtion | |
|---|---|---|---|---|
S102 White | Solar Reflection: 70% | Light Reflection: 78% | Solar Absorbtion: 30% | |
S106 Yellow | Solar Reflection: 62% | Light Reflection: 72% | Solar Absorbtion: 38% | |
S125 Beige | Solar Reflection: 57% | Light Reflection: 63% | Solar Absorbtion: 43% | |
S130 Green | Solar Reflection: 58% | Light Reflection: 65% | Solar Absorbtion: 42% | |
S142 Light Blue | Solar Reflection: 65% | Light Reflection: 69% | Solar Absorbtion: 35% | |
S149 Cream | Solar Reflection: 68% | Light Reflection: 75% | Solar Absorbtion: 32% | |
S155 Grey | Solar Reflection: 42% | Light Reflection: 48% | Solar Absorbtion: 59% | |
S156 Metallic Silver | Solar Reflection: 65% | Light Reflection: 62% | Solar Absorbtion: 35% | |
S157 Silver | Solar Reflection: 43% | Light Reflection: 44% | Solar Absorbtion: 57% | |
S159 Anthracite | Solar Reflection: 12% | Light Reflection: 13% | Solar Absorbtion: 88% | |
B160 Black | Solar Reflection: 4% | Light Reflection: 4% | Solar Absorbtion: 96% |
| Performance | Value |
|---|---|
| Best U-Value (Double Glazing) | 1.6 W/m2K |
| Best U-Value (Triple glazing) | 1.3 W/m²K |
| Best Energy Rating | B |
| Air Tightnes | Class 4 |
| Water Tightness | Class 5A |
| Wind Load | Class AE2400 |
| PAS 24 Security Upgrade | Yes |
| Max Sizes Side Hung | W: 600mm | H: 1400mm |
| Max Sizes Top Hung | W: 1400mm | H: 1400mm |
| Max Sizes Fixed Frame | W: 2100mm | H: 2100mm |
Weatherproofing
Our Legacy uPVC sash windows are built to last and to resist the ever-changing conditions the British weather throws at them, all without losing their immaculate appearance. Our sash windows have successfully been tested against wind speeds of up to 120mph to achieve a 1200 rating, while for water tightness it withstood being sprayed with eight litres of water per minute for 40 minutes with zero leakage, earning it a higher-level Class 6A classification.
Thermal Efficiency
Our steel-looking windows are made of thermally broken aluminium to prevent excessive heat loss from occurring. This polyamide thermal break will help reduce the cold from penetrating through the profile, keeping the internal space at an optimum temperature for longer. As a result, they can make a sustainable choice for any project, helping the homeowner reduce their carbon footprint over time. They boast incredibly low U-values, as low as 1.3W/m²K with triple glazing.
Security
If maximum security is important choose our aluminium heritage windows, utilising the latest advancement in security for total peace of mind. PAS 24 tested for security, our replacement aluminium windows offer smooth operation and superior levels of strength. The multi-point locking mechanisms within our aluminium heritage windows provide the highest levels of security. Please note that the comprehensive PAS 24 security upgrade must be requested as part of the window specification.
Manufacturing Guarantee
All Quickslide aluminium heritage windows come with a manufacturing guarantee of up to ten years, reflecting our commitment to quality and customer satisfaction. We believe that actions speak louder than words, so you can have peace of mind knowing that the windows we manufacture, and supply are built to last. Choose Quickslide for your aluminium heritage windows and experience the difference that quality and reliable supply can make.
Range Of Styles
Our aluminium windows are available in a wide range of styles and configurations to suit your next project. We offer both classic and traditional hardware to complement these art deco-style windows. Practical and minimal in design, these frames are exceptionally strong while remaining some of the lightest aluminium windows on the market. We work with installers nationwide who continually use our quality windows and doors to enhance UK properties. Become a Quickslide trade partner today and get a trade quote.

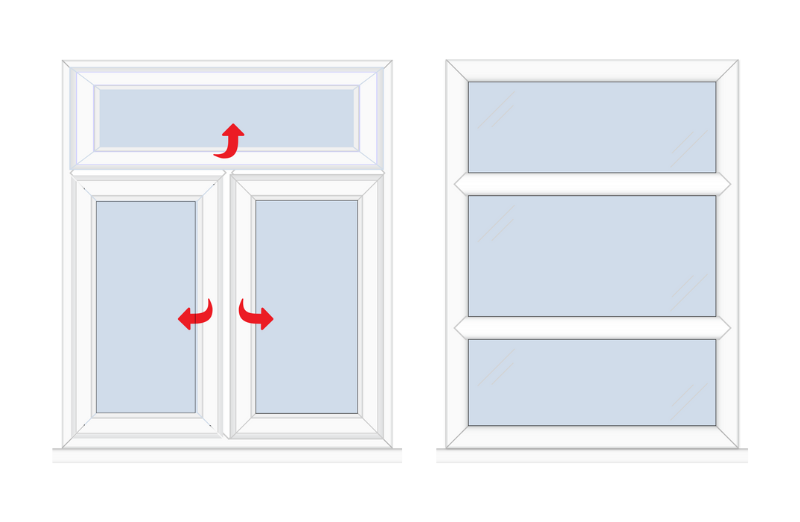

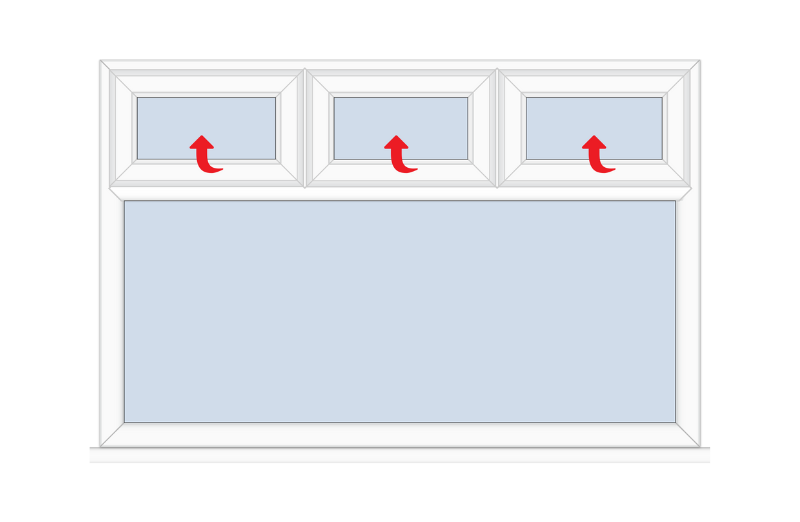

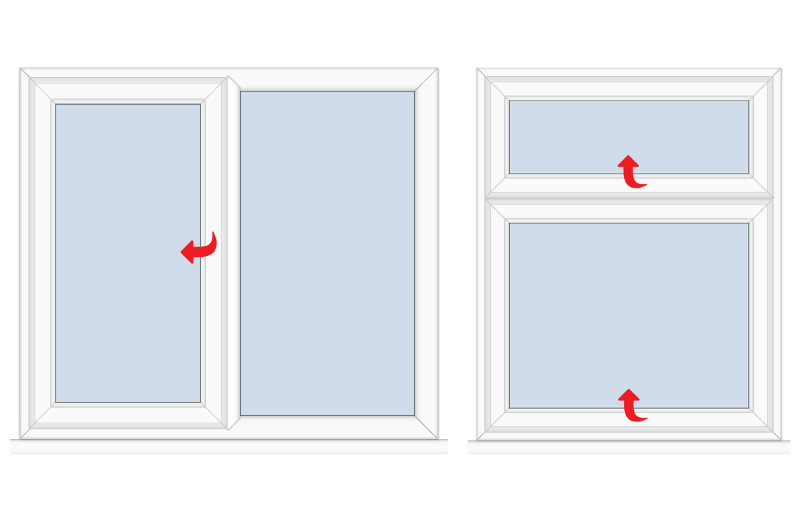

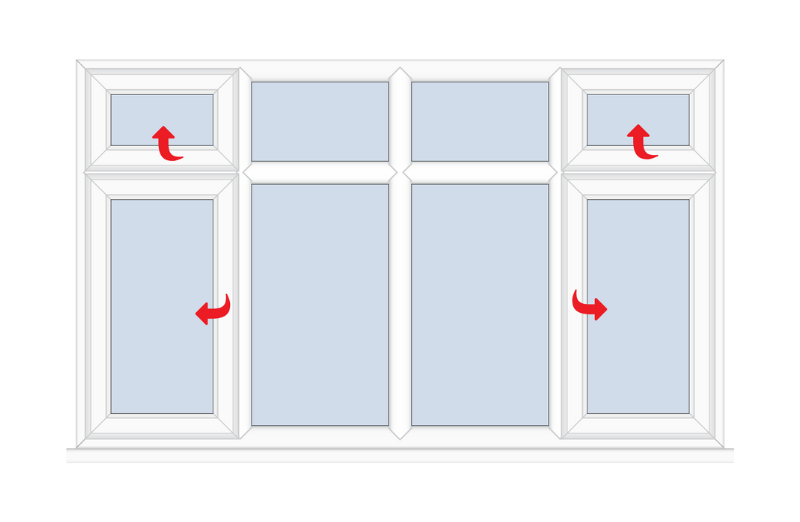

Window Configurations

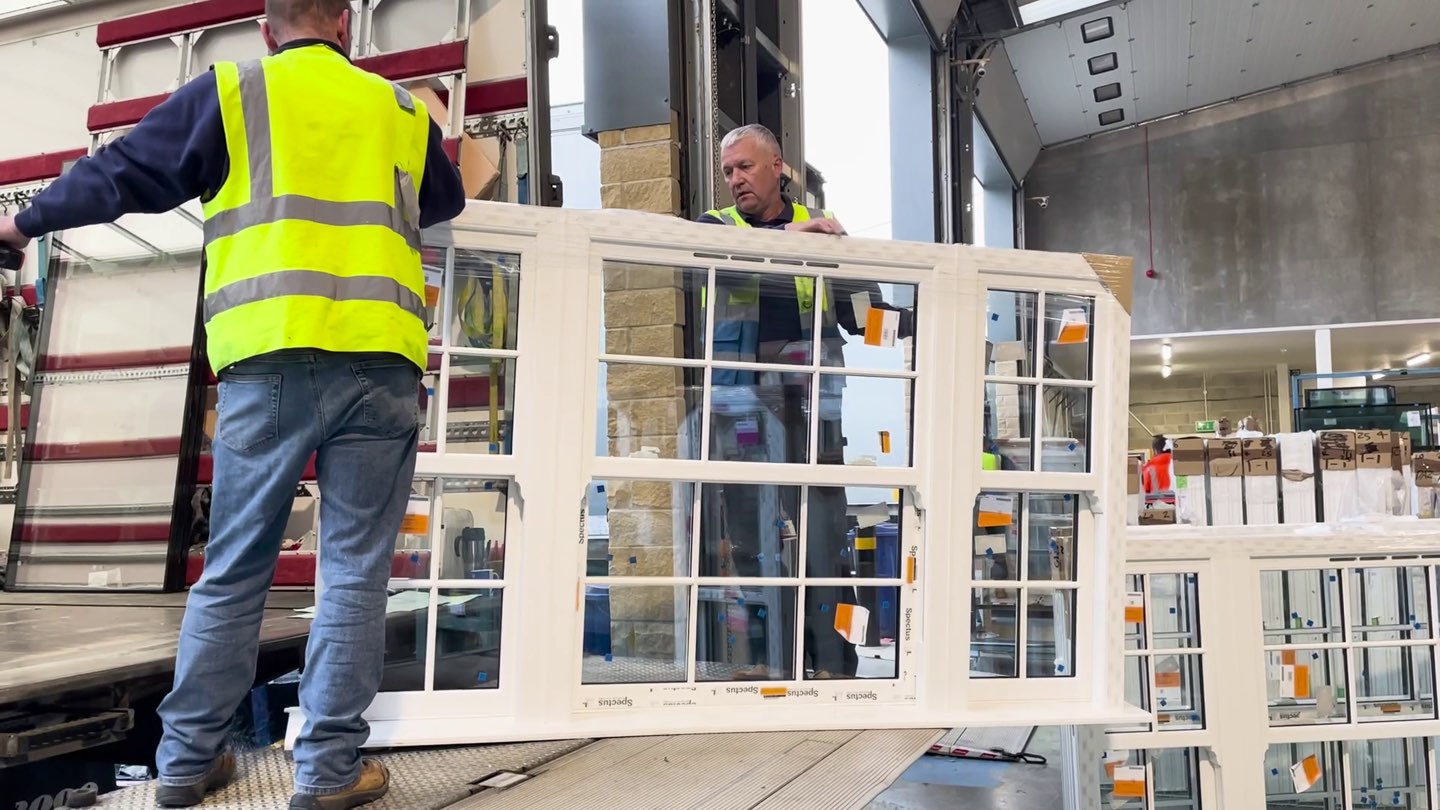

In-House Manufactured Aluminium Windows
Our Alitherm heritage windows, produced to the highest standards in Yorkshire, are crafted using high-quality aluminium to provide superior performance and longevity. These windows are specifically designed to enhance the functionality and aesthetics of any space. With a team of expert fabricators, trained extensively in aluminium, every window is made with precision and attention to detail.
Our in-house manufacturing process allows for complete control over quality and enables the team to cater to countless product configurations. This dedication to craftsmanship and innovation makes all our products not only look beautiful but also perform exceptionally well.
Aluminium Heritage Window Materials
Aluminium heritage windows, crafted from high-quality materials, offer exceptional durability and longevity, enhancing both the energy performance and aesthetics of a property. The steel-look aluminium profile provides a robust, weather-resistant barrier, ensuring that these windows stand up to harsh elements over time.
A key feature of these windows is the incorporation of a thermal polyamide break, which serves as an effective insulation layer. This innovative design not only helps to reduce heat loss but also improves energy efficiency, making choosing an aluminium heritage window a practical and attractive choice for modern homes with traditional character.
Aluminium Heritage Window Designs
Aluminium heritage window designs offer a blend of classic aesthetics and modern functionality, making them ideal for period properties or conservation areas. These windows are designed to replicate the traditional appearance of steel frames, often found in historic architecture, while benefiting from the durability and low maintenance of aluminium.
Make the most of your next project with our aluminium heritage windows available in art deco styles and traditional designs in contemporary colours. Choose accompanying hardware too, for that premium finishing touch.
Downloads
FAQs
View All FAQsAre Aluminium Heritage Windows Security Tested?
Aluminium heritage windows are security tested to PAS 24 to ensure the best levels of security. The PAS 24 security package is available as an upgrade. The windows contain multi-point locking mechanisms along the frame, which helps reduce the possibility of weak spots or points of leverage.
Are They Energy Efficient?
Our aluminium windows are extremely thermally efficient, helping to reduce excess heat loss from a property. The thermally broken aluminium used in the frames helps to trap pockets of warm air, keeping a space warmer for longer. This is especially beneficial in the winter months.
What is the lead time for your aluminium heritage windows
Our aluminium heritage windows are available on the following lead times
| Colour | Lead Time |
|---|---|
| Grey / White | 18/11/2024 |
| Black | 18/11/2024 |
| Other RAL | 25/11/2024 |
| Dual Colour | 02/12/2024 |
